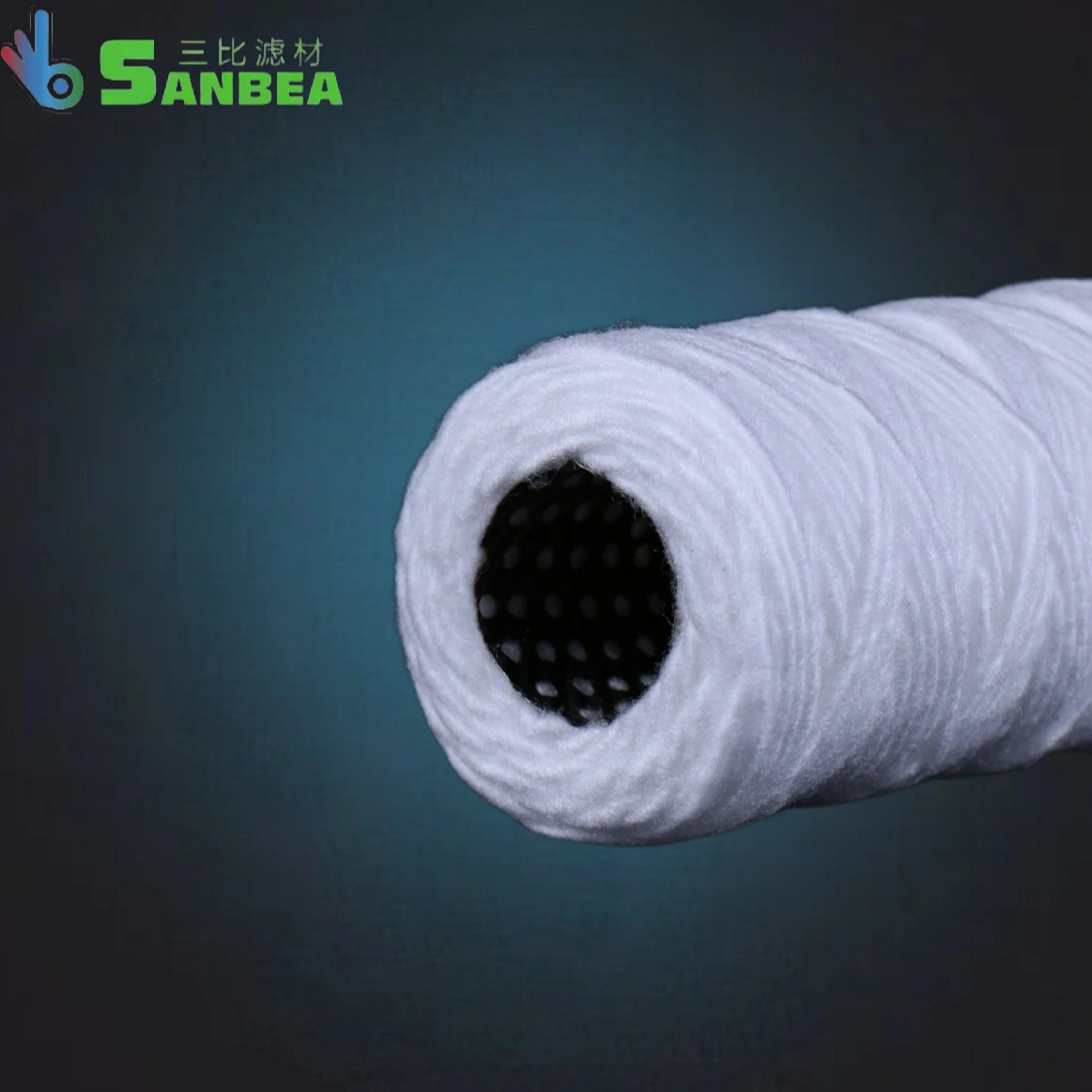

PP Yarn Filter Cartridge With Stainless Steel
SS String wound cartridges are manufactured with structured open outer layers and tight inner layers to offer true depth filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength,therefore,they can withstand higher PSID and severe operating conditions.
Brand: sanbeafilter
Material: Polypropylene
Precision: 0.5mciron_100micron
Certification: ROHS,ISO9001
Delivery Time: 3days
Product characteristics
● Fits all the standard housings.
● Low pressure drop,high dirt ho lding capacity and long service life.
● Loose outer layers and tight inner layers offers effective depth filtration.
● Various filter media fit with various applications
Feature
APPLICATION
product specification
| DIMENSION | [0D]:63mm-115mm [1D]:28mm,30mm |
| [Length]:9.87",10",20“,30",40" | |
| MATERIAL OF CONSTRUCTIONS | [ Media]:Polypropylene,Bleached cotton,Glass Fiber [Core ]: PP Stainless Steel |
| PERFORMANCE | [ Max.Operating temperature]:Polypropylene(PP):80C Bleached cotton:120C Glass Fiber:200C |
| [Max.Operating DP]:2.0bar@25C |
ordering information
| NUMBER | OUTER DIAMETER | REMOVAL RATING | LENGTH(INCH) | END CAP TYPE | CORE |
| PP | 60 = 60mm | 1 = 1um | 10 = 10” | F = DOE | S=SSCore |
| 63 = 63mm（2.5"） | 3 = 3um | 10 = 10” | M= 222/Flat | ||
| 5 = 5um | 30 = 30” | ||||
| 40 = 40” |
